Non-Comm DC Voice Coil Linear Actuator - NCC13-30-108-1SH

Non-Comm DC Voice Coil Linear Actuator,a linear motor,product,NCC13-30-108-1SH
Non-Comm DC Voice Coil Linear Actuator, NCC13-30-108-1SH

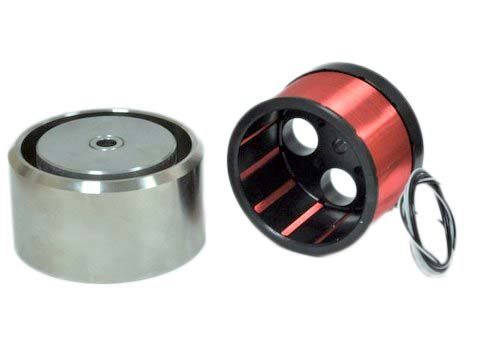

This moving coil actuator (P/N) comes supplied with a slotted aluminum bobbin which allows for heat to be conducted away from the motor windings. This actuator also comes supplied with a thru hole, should your application require a hollow actuator.

Moving coil actuators do not come with a bearing system, if you would like to see actuators with a built-in bearing system please look at our moving magnet models. Or if you would like to see how we have integrated our voice coils into linear motion stages.

To determine your motion profile needs, use our linear motion calculator.

This motor has been integrated into the following positioning stages:
VCS13-108-LB-01-MCF


Product Drawing
Device TypeMoving Coil
Stroke1.3 in31.8 mm
Radial Clearance0.020 in0.51 mm
Bearing TypeNone Provided
Moving Mass8.0 oz227 grams
Total Mass45.9 oz1300 grams
Resistance @ 20C4.8 ohms
Inductance @ 20C5.0 mH
Electrical Time Constant1.0 msec
Motor Constant1.7 lbs/√watt7.6 N/√watt
Force Constant3.8 lbs/amp16.8 N/amp
Back EMF0.50 V/ips16.8 V/m/sec
Force @ 100% Duty10.8 lbs48.1 N
Power @ 100% Duty40.0 watts
Current @ 100% Duty2.9 amps
Force @ 10% Duty32.4 lbs144 N
Power @ 10% Duty363 watts
Current @ 10% Duty8.7 amps
Outside Diameter2.9 in75.6 mm
Housing Length1.9 in47.0 mm
