Single Rail Stage - SRS-007-04-007-01

Single Rail Stage,a linear motor,product,SRS-007-04-007-01
Single Rail Stage, SRS-007-04-007-01

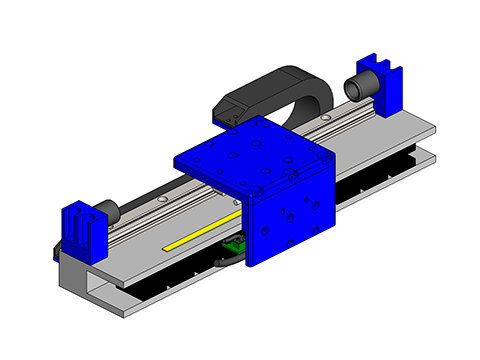

The SRS-007-04-007-01 single rail positioning stage uses a brushless linear motor to generate a continuous/peak force of 6.5 lbs [29.0 N]/19.5 lbs [86.8 N] with a total stroke length of 6.65 in [169 mm]. The non-contact 1.0-micron resolution encoder allows for precise positioning. It is guided by a rigid recirculating ball linear bearing. There are also provisions that allow customer cables to be routed within the cable carrier. It has end-of-travel rubber bumper stops. A home positioning sensor, end-of-travel-sensors, and custom mounting holes on the moving table are available upon request.

For short stroke, compact size positioning stages please see our Voice Coil Positioning Stages.

To determine your motion profile needs, use our linear motion calculator.

Motor P/N BLDM-C02
Stroke6.65 in168.9 mm
Encoder Resolution1 micron
Bearing TypeRecirculating Ball
Moving Mass2.5 lbs1.13 kg
Total Mass13.5 lbs6.1 kg
Resistance @ 20C5.3 ohms
Inductance @ 20C12.1 mH
Electrical Time Constant1.3 msec
Motor Constant1.5 lbs/√watt6.6 N/√watt
Force Constant3.4 lbs/amp15.3 N/amp
Back EMF0.39 V/ips15.2 V/m/sec
Force @ 100% Duty6.5 lbs29.0 N
Power @ 100% Duty24.8 watts
Current @ 100% Duty1.9 amps
Force @ 10% Duty19.5 lbs86.8 N
Power @ 10% Duty223 watts
Current @ 10% Duty5.7 amps
Stage Length13.6 in345.4 mm
Stage Width4.66 in118.3 mm
Stage Height2.81 in71.4 mm
Product Drawing
