Linear Brushless Motor - BLDM-C02

Linear Brushless Motor,a linear motor,product,BLDM-C02
Linear Brushless Motor, BLDM-C02

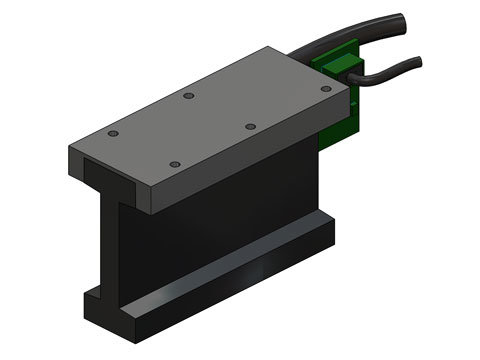

The 3-phase brushless linear motor coil assembly can be commutated trapezoidally utilizing integrated hall effects, or sinusodially using software commutation in conjunction with the appropriate amplifier, or motion controller and encoder feedback.  Any standard 3-phase brushless servo amplifier can be used to provide power to the coil assembly.  The power to the motor, which is supplied from a brushless servo amplifier via a shielded high flex motor power cable.  If the motor is ordered with a hall effect assembly board then a secondary high flex commutation cable will be included.  Equivalent to Baldor motor LMCF02C NB0123A03.


To determine your motion profile needs, use our linear motion calculator.

This motor has been integrated into the following positioning stages:
SRS-007-04-007-01


Coil Weight0.40 lbs0.18 kg
Coil Length2.9 in73.7 mm
Power @ 10% Duty223 watts
Current @ 10% Duty5.7 amps
Force @ 10% Duty19.5 lbs86.8 N
Power @ 100% Duty24.8 watts
Current @ 100% Duty1.9 amps
Force @ 100% Duty6.5 lbs29.0 N
Back EMF0.39 V/ips15.2 V/m/sec
Force Constant3.4 lbs/amp15.3 N/amp
Motor Constant1.5 lbs/√watt6.6 N/√watt
Electrical Time Constant1.3 msec
Inductance @ 20C12.1 mH
Resistance @ 20C5.3 ohms
Electrical Cycle Length2.4 in60.96 mm
Attractive Force0 lbf0 N/ft
Product Drawing
