Dual Rail Stage - DRS-004-15-200-01-MZ

Dual Rail Stage,a linear motor,product,DRS-004-15-200-01-MZ
Dual Rail Stage, DRS-004-15-200-01-MZ

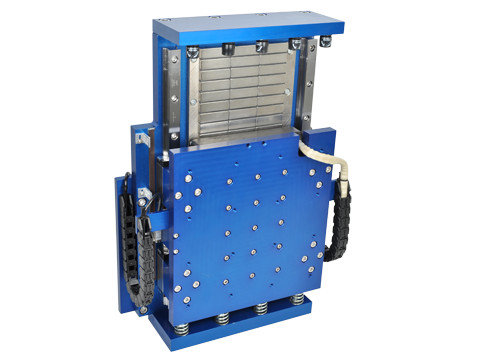

The DRS-004-15-200-01-MZ vertically oriented dual rail positioning stage uses a high force brushless linear motor to generate a continuous/peak force of 200 lbs [888 N]/600 lbs [2664 N] with a total stroke length of 5.3 in [135 mm]. The non-contact 1.0-micron resolution encoder allows for precise positioning. It is guided by dual rigid recirculating ball linear bearings. It has a home position sensor and end-of-travel sensors. End-of-travel rubber bumper and spring stops dampen the system in case of vertical drop. There are also provisions that allow customer cables to be routed within the cable carrier. Protective bellows covers, and custom mounting holes on the moving table are available upon request.



For smaller cross-section, lighter weight brushless linear motor driven positioning stages. Please see our SR Positioning Stages.

To determine your motion profile needs, use our linear motion calculator.

Motor P/N BLSM-2F
Stroke5.3 in135 mm
Encoder Resolution1 micron
Bearing TypeRecirculating Ball
Moving Mass38.0 lbs17.2 kg
Total Mass110 lbs50.0 kg
Resistance @ 20C2.8 ohms
Inductance @ 20C23.5 mH
Electrical Time Constant8.5 msec
Motor Constant15.7 lbs/√watt69.5 N/√watt
Force Constant26.0 lbs/amp115 N/amp
Back EMF1 V/ips2 V/m/sec
Force @ 100% Duty200 lbs888 N
Power @ 100% Duty163 watts
Current @ 100% Duty7.7 amps
Force @ 10% Duty600 lbs2664 N
Power @ 10% Duty14617 watts
Current @ 10% Duty23.1 amps
Stage Length20.9 in531 mm
Stage Width15.4 in392 mm
Stage Height4.1 in105 mm
