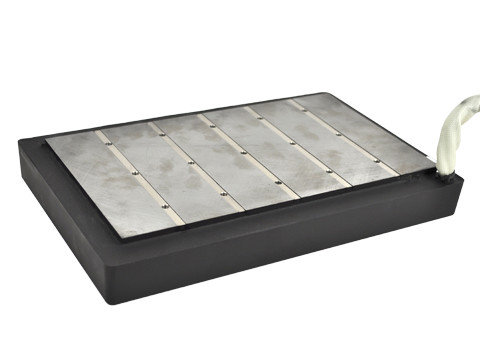

To determine your motion profile needs, use our linear motion calculator.
This motor has been integrated into the following positioning stages:
DRS-004-15-200-01-MZ
| Length | 11.8 in | 300 mm |
| Width | 7.5 in | 191 mm |
| Weight | 27 lbs | 12.2 kg |
| Height | 1.48 in | 37.6 mm |
| Coil Weight | 38 lbs | 17.2 kg |
| Coil Length | 11.8 in | 300 mm |
| Power @ 10% Duty | 1467 watts | |
| Current @ 10% Duty | 23.1 amps | |
| Force @ 10% Duty | 600 lbs | 2664 N |
| Power @ 100% Duty | 163 watts | |
| Current @ 100% Duty | 7.7 amps | |
| Force @ 100% Duty | 200 lbs | 888 N |
| Back EMF | 2.85 V/ips | 115.4 V/m/sec |
| Force Constant | 26 lbs/amp | 115.4 N/amp |
| Motor Constant | 15.7 lbs/√watt | 69.5 N/√watt |
| Electrical Time Constant | 8.5 msec | |
| Resistance @ 20C | 2.75 ohms | |
| Electrical Cycle Length | 1.35 in | 34.3 mm |
| Attractive Force | * lbf | * N/ft |
| Air Gap | 0.03 in | 0.76 mm |
