Voice Coil Positioning Stage - VCS10-023-AB-01-M

< Back to list

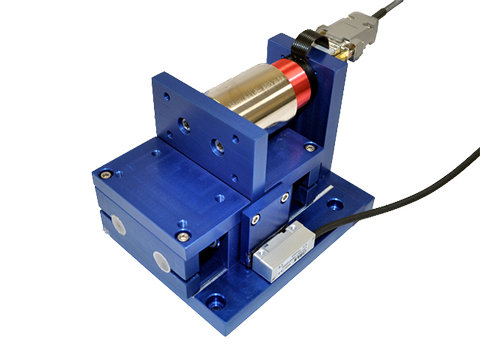

image of a Voice Coil Positioning Stage, a type of linear motor, product number, VCS10-023-AB-01-M The VCS10-023-AB-01-M voice coil positioning stage uses H2W voice coil motor NCC10-15-023-1X to generate a continuous/peak force of 2.3 lbs [10.2 N]/6.9 lbs [30.7 N] with a total stroke length of 1.0 in [25.4 mm]. The 1.0-micron resolution encoder allows for precise positioning. It comes supplied with a non-contact air bearing (air bushing) which allows for frictionless motion. The motor coil is the moving part of the assembly in order to reduce the moving mass of the system. Power is supplied to the motor via a high flex, high reliability flat ribbon cable.

For long stroke, compact size positioning stages please see our Single Rail Positioning Stages.

Product Drawing
Motor P/N NCC10-15-023-1X
Stroke1.0 in25.4 mm
Encoder Resolution1.0 micron
Bearing TypeAir Bushing
Moving Mass32.0 oz908 grams
Total Mass61.9 oz1760 grams
Resistance @ 20C7.5 ohms
Inductance @ 20C3.3 mH
Electrical Time Constant0.44 msec
Motor Constant0.85 lbs/√watt3.8 N/√watt
Force Constant2.3 lbs/amp10.2 N/amp
Back EMF0.26 V/ips10.2 V/m/sec
Force @ 100% Duty2.3 lbs10.2 N
Power @ 100% Duty7.0 watts
Current @ 100% Duty1.0 amps
Force @ 10% Duty6.9 lbs30.7 N
Power @ 10% Duty66.0 watts
Current @ 10% Duty3.0 amps
Encoder TypeMagnetic
Moving PartCoil Assembly
