Vacuum Compatible Voice Coil Positioning Stage - VCS05-060-VBS-V01

Vacuum Compatible Voice Coil Positioning Stage,a linear motor,product,VCS05-060-VBS-V01
Vacuum Compatible Voice Coil Positioning Stage, VCS05-060-VBS-V01

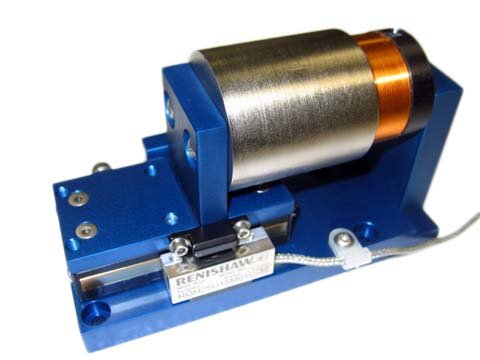

The VCS05-060-VBS-V01 voice coil positioning stage uses H2W voice coil motor NCC05-18-060-2X to generate a continuous/peak force of 6.0 lbs [26.7 N]/18.0 lbs [80.1 N] with a total stroke length of 0.50 in [12.7mm]. The 1.0-micron resolution encoder allows for precise positioning. It comes supplied with a ball slide which allows for smooth motion. The magnet housing is the moving part of the assembly so that there are no moving (flexing) cables in the system. This voice coil positioning stage has been manufactured using low-outgassing materials as selected by NASA in order to make it vacuum compatible.



For long stroke, compact size positioning stages please see our Single Rail Positioning Stages.

To determine your motion profile needs, use our linear motion calculator.

Product Drawing
Motor P/N NCC05-18-060-2X
Stroke0.50 in12.7 mm
Encoder Resolution1.0 micron
Bearing TypeBall Slide
Moving Mass15.4 oz436 grams
Total Mass31.7 oz899 grams
Resistance @ 20C11.5 ohms
Inductance @ 20C4.5 mH
Electrical Time Constant0.39 msec
Motor Constant1.8 lbs/√watt7.8 N/√watt
Force Constant6.3 lbs/amp27.8 N/amp
Back EMF0.70 V/ips27.8 V/m/sec
Force @ 100% Duty6.0 lbs26.7 N
Power @ 100% Duty12.0 watts
Current @ 100% Duty1.0 amps
Force @ 10% Duty18.0 lbs80.1 N
Power @ 10% Duty102 watts
Current @ 10% Duty3.0 amps
Moving PartMagnet Assembly
