Voice Coil Positioning Stage - VCS05-060-AB-01-MC

< Back to list

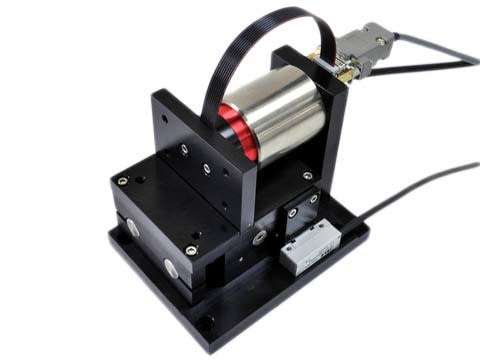

Voice Coil Positioning Stage,a linear motor,product,VCS05-060-AB-01-MC The VCS05-060-AB-01-MC voice coil positioning stage uses H2W voice coil motor NCC05-18-060-2X to generate a continuous/peak force of 6.0 lbs [26.7 N]/18.0 lbs [80.1 N] with a total stroke length of 0.50 in [12.1mm]. The 1.0-micron resolution encoder allows for precise positioning. It comes supplied with a non-contact air bearing (air bushing) which allows for frictionless motion. The motor coil is the moving part of the assembly in order to reduce the moving mass of the system. Power is supplied to the motor via a high flex, high reliability flat ribbon cable.

For long stroke, compact size positioning stages please see our Single Rail Positioning Stages.

To determine your motion profile needs, use our linear motion calculator.

Product Drawing
Motor P/N NCC05-18-060-2X
Stroke0.50 in12.7 mm
Encoder Resolution1.0 micron
Bearing TypeAir Bushing
Moving Mass20.0 oz568 grams
Total Mass64.0 oz1800 grams
Resistance @ 20C11.5 ohms
Inductance @ 20C4.5 mH
Electrical Time Constant0.39 msec
Motor Constant1.8 lbs/√watt7.9 N/√watt
Force Constant6.3 lbs/amp27.8 N/amp
Back EMF0.70 V/ips27.8 V/m/sec
Force @ 100% Duty6.0 lbs26.7 N
Power @ 100% Duty12.0 watts
Current @ 100% Duty1.0 amps
Force @ 10% Duty18.0 lbs80.1 N
Power @ 10% Duty102 watts
Current @ 10% Duty3.0 amps
Encoder TypeMagnetic
Moving PartCoil Assembly
