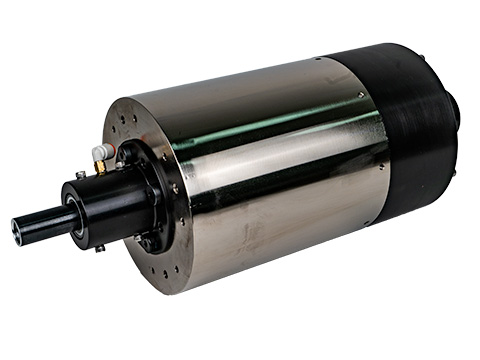

The actuator is capable of a continuous force of 100 lbs [454 N] and a peak force of 300 lbs [1360 N] at a duty cycle of 10% (i.e., 1 second on and 9 seconds off). A mass of just over 6.0 lbs [2.8 kg] allows for a maximal acceleration. The actuator has a stroke of 1.2 in [30 mm] and a Force Constant of about 10 lbs/amp [45 N/amp]. This relatively large stroke allows for a greater range of applications requiring greater strokes and high accelerations.
To determine your motion profile needs, use our linear motion calculator.
| Device Type | Moving Coil | |
| Stroke | 1.20 in | 30.5 mm |
| Radial Clearance | 0.025 in | 0.64 mm |
| Bearing Type | Air Bushing | |
| Moving Mass | 97.6 oz | 2800 grams |
| Total Mass | 723.2 oz | 20500 grams |
| Resistance @ 20C | 0.7 ohms | |
| Inductance @ 20C | 0.6 mH | |
| Electrical Time Constant | 0.9 msec | |
| Motor Constant | 11.8 lbs/√watt | 52.5 N/√watt |
| Force Constant | 9.9 lbs/amp | 43.9 N/amp |
| Back EMF | 1.1 V/ips | 43.9 V/m/sec |
| Force @ 100% Duty | 100 lbs | 454 N |
| Power @ 100% Duty | 72 watts | |
| Current @ 100% Duty | 10 amps | |
| Force @ 10% Duty | 300 lbs | 1362 N |
| Power @ 10% Duty | 650 watts | |
| Current @ 10% Duty | 30 amps | |
| Outside Diameter | 5.600 in | 142.2 mm |
| Housing Length | 9.25 in | 235 mm |
