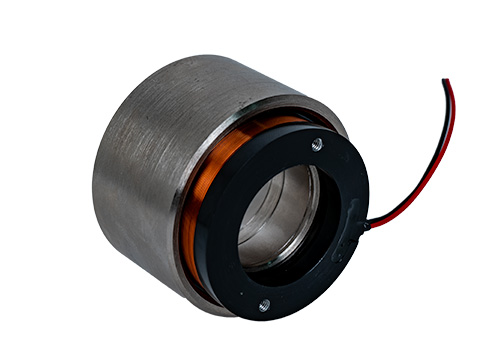

Moving coil actuators do not come with a bearing system, if you would like to see actuators with a built-in bearing system please look at our moving magnet models. Or if you would like to see how we have integrated our voice coils into linear motion stages.
To determine your motion profile needs, use our linear motion calculator.
This motor has been integrated into the following positioning stages:
VCS03-100-LB-01-MCH
| Device Type | Moving Coil | |
| Stroke | 0.25 in | 6.4 mm |
| Radial Clearance | 0.030 in | 0.76 mm |
| Bearing Type | None | |
| Moving Mass | 4.8 oz | 135 grams |
| Total Mass | 27.2 oz | 730 grams |
| Resistance @ 20C | 3.50 ohms | |
| Inductance @ 20C | 2.5 mH | |
| Electrical Time Constant | 0.71 msec | |
| Motor Constant | 1.64 lbs/√watt | 7.31 N/√watt |
| Force Constant | 3.1 lbs/amp | 14 N/amp |
| Back EMF | 0.32 V/ips | 14 V/m/sec |
| Force @ 100% Duty | 9 lbs | 40 N |
| Power @ 100% Duty | 30 watts | |
| Current @ 100% Duty | 2.9 amps | |
| Force @ 10% Duty | 27 lbs | 120 N |
| Power @ 10% Duty | 270 watts | |
| Current @ 10% Duty | 8.8 amps | |
| Outside Diameter | 2.80 in | 71.1 mm |
| Housing Length | 1.60 in | 40.6 mm |
