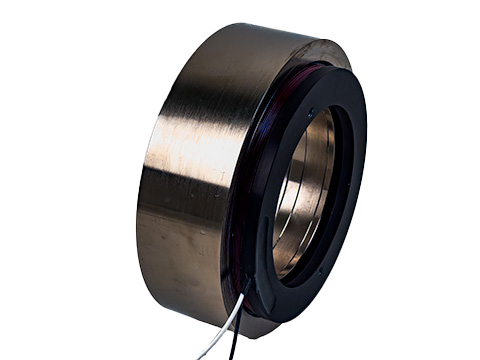

Moving coil actuators do not come with a bearing system, if you would like to see actuators with a built-in bearing system please look at our moving magnet models. Or if you would like to see how we have integrated our voice coils into linear motion stages.
To determine your motion profile needs, use our linear motion calculator.
| Device Type | Moving Coil | |
| Stroke | 0.13 in | 3.2 mm |
| Radial Clearance | 0.030 in | 0.8 mm |
| Bearing Type | None | |
| Moving Mass | 9.6 oz | 275 grams |
| Total Mass | 30.4 oz | 860 grams |
| Resistance @ 20C | 3.3 ohms | |
| Inductance @ 20C | 6.0 mH | |
| Electrical Time Constant | 1.5 msec | |
| Motor Constant | 2.9 lbs/√watt | 13.0 N/√watt |
| Force Constant | 5.3 lbs/amp | 23.6 N/amp |
| Back EMF | 0.6 V/ips | 23.6 V/m/sec |
| Force @ 100% Duty | 26 lbs | 116 N |
| Power @ 100% Duty | 80 watts | |
| Current @ 100% Duty | 4.9 amps | |
| Force @ 10% Duty | 78 lbs | 348 N |
| Power @ 10% Duty | 700 watts | |
| Current @ 10% Duty | 14.7 amps | |
| Outside Diameter | 5.906 in | 150 mm |
| Housing Length | 1.750 in | 44.5 mm |
