Non-Comm DC Voice Coil Linear Actuator - NCC01-04-001-1X

< Back to list

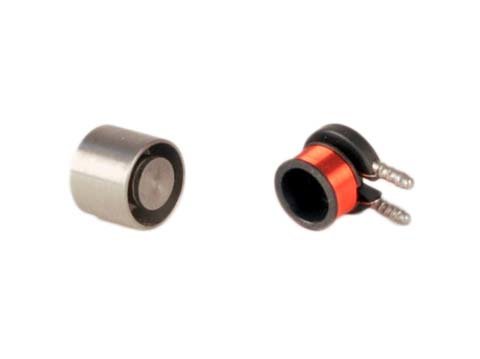

Non-Comm DC Voice Coil Linear Actuator,a linear motor,product,NCC01-04-001-1X This moving coil actuator (NCC01-04-001-1X) comes supplied with a plastic bobbin in order to prevent eddy currents from being generated in the bobbin, and allow for a minimal resistance to the desired motion.

Moving coil actuators do not come with a bearing system, if you would like to see actuators with a built-in bearing system please look at our moving magnet models. Or if you would like to see how we have integrated our voice coils into linear motion stages.

To determine your motion profile needs, use our linear motion calculator.

This motor has been integrated into the following positioning stages:
VCS01-001-CR-001-F


Product Drawing
Device TypeMoving Coil
Stroke0.13 in3.2 mm
Radial Clearance0.01 in0.25 mm
Bearing TypeNone Provided
Moving Mass0.04 oz1.2 grams
Total Mass0.20 oz5.7 grams
Resistance @ 20C1.5 ohms
Inductance @ 20C0.063 mH
Electrical Time Constant0.042 msec
Motor Constant0.08 lbs/√watt0.36 N/√watt
Force Constant0.10 lbs/amp0.45 N/amp
Back EMF0.01 V/ips0.45 V/m/sec
Force @ 100% Duty0.06 lbs0.27 N
Power @ 100% Duty0.6 watts
Current @ 100% Duty0.6 amps
Force @ 10% Duty0.18 lbs0.80 N
Power @ 10% Duty5.1 watts
Current @ 10% Duty1.8 amps
Outside Diameter0.44 in11.1 mm
Housing Length0.36 in9.0 mm
