Single Rail Stage - SRS-040-04-025

Single Rail Stage,a linear motor,product,SRS-040-04-025
Single Rail Stage, SRS-040-04-025

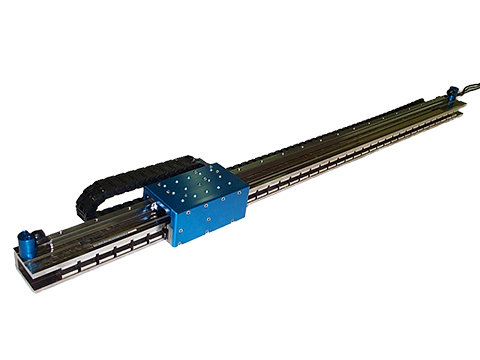

The SRS-040-04-025 single rail positioning stage uses a brushless linear motor to generate a continuous/peak force of 20.6 lbs [91.6 N]/61.8 lbs [275 N] with a total stroke length of 40.45 in [1027 mm]. The non-contact 1.0-micron resolution encoder allows for precise positioning. It is guided by a rigid recirculating ball linear bearing. There are also provisions that allow customer cables to be routed within the cable carrier. It has end-of-travel rubber bumper stops. A home positioning sensor, end-of-travel-sensors, and custom mounting holes on the moving table are available upon request.

To determine your motion profile needs, use our linear motion calculator.

Motor P/N BLDC-02
Stroke40.45 in1027 mm
Encoder Resolution1 micron
Bearing TypeRecirculating Ball
Moving Mass4 lbs1.8 kg
Total Mass38 lbs17.2 kg
Resistance @ 20C8.2 ohms
Inductance @ 20C6.0 mH
Electrical Time Constant0.7 msec
Motor Constant2.12 lbs/√watt9.43 N/√watt
Force Constant6.1 lbs/amp27.3 N/amp
Back EMF0.80 V/ips31.5 V/m/sec
Force @ 100% Duty20.6 lbs91.6 N
Power @ 100% Duty95 watts
Current @ 100% Duty3.4 amps
Force @ 10% Duty61.8 lbs274.8 N
Power @ 10% Duty846 watts
Current @ 10% Duty10.2 amps
Stage Length50 in1270 mm
Stage Width5.4 in137.2 mm
Stage Height2.76 in70.1 mm
Product Drawing
