Single Rail Stages - SRS-010-04-020-01

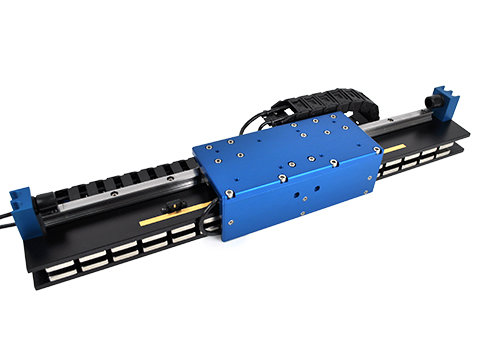

Single Rail Stages,a linear motor,product,SRS-010-04-020-01
Single Rail Stages, SRS-010-04-020-01
The SRS-010-04-020-01 single rail positioning stage uses a brushless linear motor to generate a continuous/peak force of 19.5 lbs [87 N]/58 lbs [260 N] with a total stroke length of 11 in [279.4 mm]. The non-contact 1.0-micron resolution encoder allows for precise positioning. It is guided by a rigid recirculating ball linear bearing. There are also provisions that allow customer cables to be routed within the cable carrier. It has end-of-travel rubber bumper stops. A home positioning sensor, end-of-travel-sensors, and custom mounting holes on the moving table are available upon request.

For short stroke, compact size positioning stages please see our Voice Coil Positioning Stages.

To determine your motion profile needs, use our linear motion calculator.

Motor P/N BLDM-C06
Stroke11 in279.4 mm
Encoder Resolution1 micron
Bearing TypeRecirculating Ball
Moving Mass4.5 lbs2 kg
Total Mass22.5 lbs10.2 kg
Resistance @ 20C15.9 ohms
Inductance @ 20C15.9 mH
Electrical Time Constant1 msec
Motor Constant2.6 lbs/√watt11.5 N/√watt
Force Constant10.3 lbs/amp45.8 N/amp
Back EMF1.2 V/ips45.6 V/m/sec
Force @ 100% Duty19.5 lbs87.0 N
Power @ 100% Duty74.3 watts
Current @ 100% Duty1.9 amps
Force @ 10% Duty58 lbs260 N
Power @ 10% Duty668 watts
Current @ 10% Duty5.7 amps
Stage Length22 in559 mm
Stage Width5.16 in128.5 mm
Stage Height2.81 in71.4 mm
Product Drawing
