Single Rail Stage - SRS-008-04-040-A

Single Rail Stage,a linear motor,product,SRS-008-04-040-A
Single Rail Stage, SRS-008-04-040-A

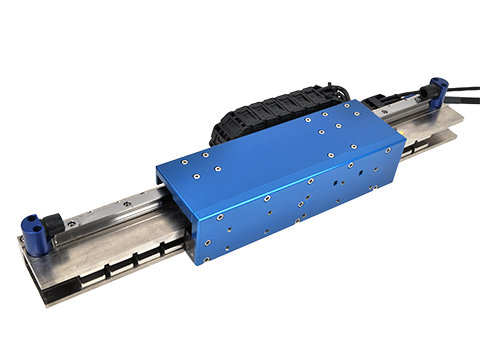

The SRS-008-04-040-A single rail positioning stage uses a brushless linear motor to generate a continuous/peak force of 40.0 lbs [17.8 N]/120 lbs [53.3 N] with a total stroke length of 8.4 in [213 mm]. The non-contact 1.0-micron resolution encoder allows for precise positioning. It is guided by a rigid recirculating ball linear bearing. There are also provisions that allow customer cables to be routed within the cable carrier. It has end-of-travel rubber bumper stops. A home positioning sensor, end-of-travel-sensors, and custom mounting holes on the moving table are available upon request.



For short stroke, compact size positioning stages please see our Voice Coil Positioning Stages.

To determine your motion profile needs, use our linear motion calculator.

Motor P/N n/a
Stroke8.4 in213 mm
Encoder Resolution1.0 micron
Bearing TypeRecirculating Ball
Moving Mass4.8 lbs2.2 kg
Total Mass23.0 lbs10.4 kg
Resistance @ 20C16.1 ohms
Inductance @ 20C12.0 mH
Electrical Time Constant0.70 msec
Motor Constant3.0 lbs/√watt13.3 N/√watt
Force Constant12.3 lbs/amp54.7 N/amp
Back EMF1.6 V/ips63.0 V/m/sec
Force @ 100% Duty40.0 lbs17.8 N
Power @ 100% Duty179 watts
Current @ 100% Duty3.3 amps
Force @ 10% Duty120 lbs53.3 N
Power @ 10% Duty1611 watts
Current @ 10% Duty9.9 amps
Stage Length22.8 in579 mm
Stage Width5.4 in137 mm
Stage Height2.7 in68.6 mm
Product Drawing
