Single Rail Stage - SRS-006-06-050-01-EX

Single Rail Stage,a linear motor,product,SRS-006-06-050-01-EX
Single Rail Stage, SRS-006-06-050-01-EX

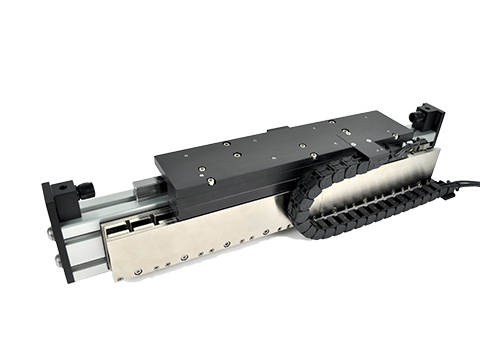

The SRS-006-06-050-01-EX single rail positioning stage is ideal for high-speed closed loop positioning applications that require both short and long travel distances. It uses a brushless linear motor to generate a continuous/peak force of 50 lbs [220 N]/150 lbs [660 N] with a total stroke length of 5.75 in [146 mm]. The non-contact 1 micron resolution encoder allows for precise position control. It is guided by a pair of recirculating ball linear bearings on a precision linear bearing rail. The entire stage is assembled on a single piece of aluminum extrusion, thus reducing the overall weight of the system. There are also provisions that allow customer cables to be routed within the cable carrier. It has end-of-travel rubber bumper stops. A home positioning sensor, end-of-travel-sensors, and custom mounting holes on the moving table are available upon request.

To determine your motion profile needs, use our linear motion calculator.

Motor P/N BLDM-D12
Stroke5.75 in146 mm
Encoder Resolution1 micron
Bearing TypeRecirculating Ball
Moving Mass9 lbs4 kg
Total Mass33 lbs15 kg
Resistance @ 20C13.6 ohms
Inductance @ 20C18 mH
Electrical Time Constant1.3 msec
Motor Constant4.51 lbs/√watt20.1 N/√watt
Force Constant16.7 lbs/amp74.2 N/amp
Back EMF1.88 V/ips74.16 V/m/sec
Force @ 100% Duty49.6 lbs220 N
Power @ 100% Duty155.3 watts
Current @ 100% Duty3 amps
Force @ 10% Duty148 lbs660 N
Power @ 10% Duty1397.7 watts
Current @ 10% Duty8.9 amps
Stage Length25.16 in369.1 mm
Stage Width6.39 in162.3 mm
Stage Height5.15 in130.7 mm
Product Drawing
