10 lb Single Axis Linear Stepper Forcer - STS-1220-RV

10 lb Single Axis Linear Stepper Forcer,a linear motor,product,STS-1220-RV
10 lb Single Axis Linear Stepper Forcer, STS-1220-RV

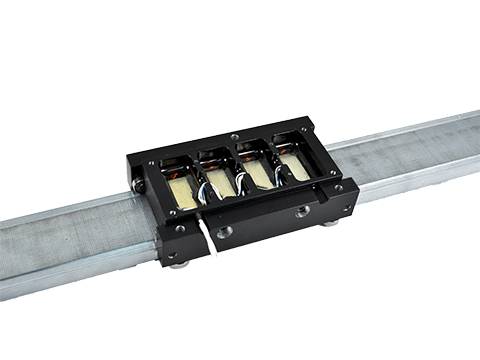

The STS-1220-RV is a 2-phase single axis linear stepper motor that generates a continuous force of 11.0 lbs [48.8 N]. It is guided by precision roller bearings along the platen. The roller bearings also help maintain the required motor air gap. Power is supplied to the motor via a 7.5in long cable with a 4-pin Molex connector (P/N: 39-01-4041). There are mounting holes on the top of forcer to allow for payload mounting

This forcer is designed to operate on a 1.96" [49.8 mm] wide, 0.47" [11.9 mm] thick bar platen. Platen Model #: STP-20-XXX-R.

To determine your motion profile needs, use our linear motion calculator.

Bearing TypeRoller
Forcer Mass0.93 lbs419 grams
Platen Mass0.28 lbs/in5 grams/mm
# of Phases2
Resistance @ 20C1.15 ohms
Inductance @ 20C1.3 mH
Electrical Time Constant1.13 msec
Force11 lbs48.8 N
Current4 amps
Forcer Length5.5 in139 mm
Forcer Width2.9 in74.2 mm
Forcer Height1.4 in34.4 mm
Product Drawing
