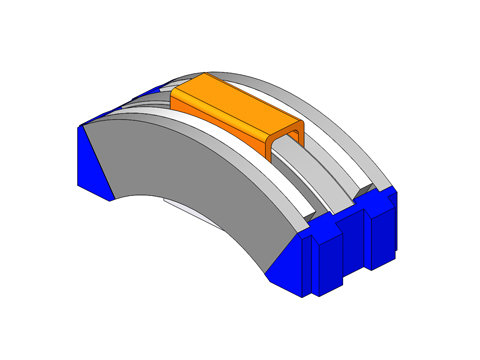

Rotary Voice Coil Actuator, TWR-015-142-1RC

H2W Technologies Limited Angle Torque Motors are ideal for compact, limited angular excursion (<180º), rotary, closed loop servo applications. Unlike conventional rotary brush and brushless motors, the torquers are wound in such a way that no commutation is required for motion to occur. The result is a much simpler and more reliable system.

To determine your motion profile needs, use our rotary motion calculator.

Continuous Torque Range	15 degrees	0.26 rad
Total Mass	20.3 oz	575 grams
Housed w/ Bearings	No
Torque @ 100% Duty	142 in-oz	100 N-cm
Torque at 10% Duty	426 in-oz	300 N-cm
Power @ 100% Duty	8 watts
Power @ 10% Duty	67 watts
Torque Constant	154 in-oz/amp	108 N-cm/amp
Motor Constant	52 in-oz/sqrt(watt)	36 N-cm/sqrt(watt)
Current @ 100% Duty	0.9 amps
Current @ 10% Duty	2.7 amps
Resistance @ 20°C	8.5 ohms

Product Drawing
