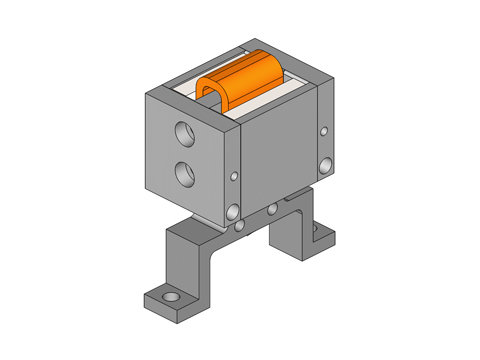

Rotary Voice Coil Actuator, TWR-005-26-006

H2W Technologies Limited Angle Torque Motors are ideal for compact, limited angular excursion (<180º), rotary, closed loop servo applications. Unlike conventional rotary brush and brushless motors, the torquers are wound in such a way that no commutation is required for motion to occur. The result is a much simpler and more reliable system.

To determine your motion profile needs, use our rotary motion calculator.

Continuous Torque Range	5 degrees	0.09 rad
Total Mass	3.8 oz	120 grams
Housed w/ Bearings	No
Torque @ 100% Duty	6 in-oz	4.2 N-cm
Torque at 10% Duty	18 in-oz	12.7 N-cm
Power @ 100% Duty	0.5 watts
Power @ 10% Duty	2.0 watts
Torque Constant	21 in-oz/amp	15 N-cm/amp
Motor Constant	13 in-oz/sqrt(watt)	9.1 N-cm/sqrt(watt)
Current @ 100% Duty	0.3 amps
Current @ 10% Duty	0.9 amps
Resistance @ 20°C	2.5 ohms

Product Drawing
