AC Linear Induction Motor - LMB-08-140-EC

AC Linear Induction Motor,a linear motor,product,LMB-08-140-EC

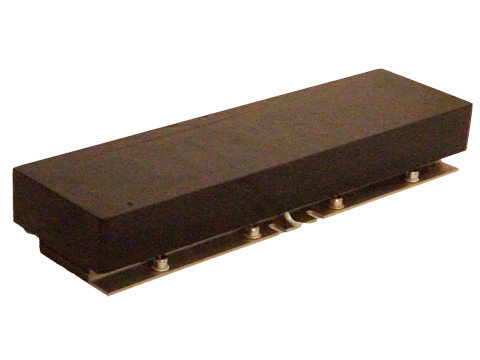

AC Linear Induction Motor, LMB-08-140-EC
AC Linear Induction are used for high speed motion applications that do not require any positioning. The motors require 3 phase AC power. The speed can be adjusted by varying the input frequency. The aluminum and steel reaction plates must be supplied by the customer. A bearing system to maintain the air gap must be supplied by the customer.

Equivalent to Baldor Motor P/N LMAC1907C23B05, Spec # LN0019A00.

To determine your motion profile needs, use our linear motion calculator.

ConfigurationSingle Sided
Air Gap0.125 in3.0 mm
Duty Cycle5 %
Force @ Duty Cycle130 lbs578 N
Power @ Duty Cycle6.3 kW
Current @ Duty Cycle48 amps
Phase Resistance @ 20C0.89 ohms
Input Voltage230 VAC, 3 Θ
Frequency / Synchronous Velocity60 Hz270 ips
Length19.6 in429 mm
Width5.3 in134 mm
Height3.0 in76.2 mm
Weight56.3 lbs25.5 kg
Product Drawing
