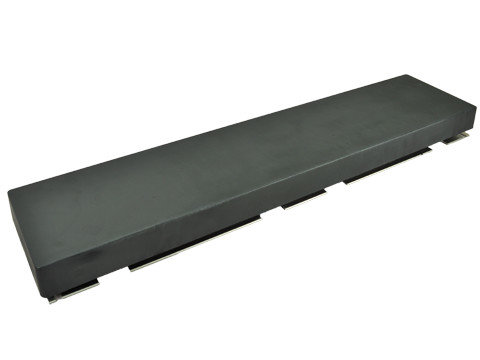

AC Linear Induction Motor - LMAC3208C23D15

AC Linear Induction Motor,a linear motor,product,LMAC3208C23D15
AC Linear Induction Motor, LMAC3208C23D15
AC Linear Induction are used for high speed motion applications that do not require any positioning. The motors require 3 phase AC power. The speed can be adjusted by varying the input frequency. The aluminum and steel reaction plates must be supplied by the customer. A bearing system to maintain the air gap must be supplied by the customer.

Equivalent to Baldor Motor #: LN0027A00

To determine your motion profile needs, use our linear motion calculator.

ConfigurationSingle Sided
Air Gap0.125 in3.0 mm
Duty Cycle15 %
Force @ Duty Cycle180 lbs800 N
Power @ Duty Cycle7.8 kW
Current @ Duty Cycle27 amps
Phase Resistance @ 20C0.85 ohms
Input Voltage480 VAC, 3 Θ
Frequency / Synchronous Velocity60 Hz270 ips
Length32.0 in813 mm
Width8.0 in203 mm
Height1 in2 mm
Weight107 lbs48.5 kg
Product Drawing
