Ironcore Linear Motor - BLSM-6G

Ironcore Linear Motor,a linear motor,product,BLSM-6G

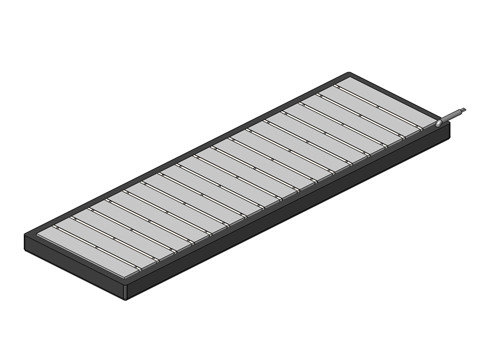

Ironcore Linear Motor, BLSM-6G
The 3-phase brushless linear motor coil assembly can be commutated trapezoidally utilizing integrated hall effects, or sinusodially using software commutation in conjunction with the appropriate amplifier, or motion controller and encoder feedback.  Any standard 3-phase brushless servo amplifier can be used to provide power to the coil assembly.  The power to the motor, which is supplied from a brushless servo amplifier via a shielded high flex motor power cable.  If the motor is ordered with a hall effect assembly board then a secondary high flex commutation cable will be included.  Equivalent to Baldor motor LMIC6G.

To determine your motion profile needs, use our linear motion calculator.

Coil Weight103 lbs46.8 kg
Coil Length33.4 in848 mm
Power @ 10% Duty* watts
Current @ 10% Duty12.0 amps
Force @ 10% Duty2069 lbs9203 N
Power @ 100% Duty* watts
Current @ 100% Duty4.0 amps
Force @ 100% Duty776 lbs3451 N
Back EMF21.9 V/ips864 V/m/sec
Force Constant194 lbs/amp862.8 N/amp
Motor Constant* lbs/√watt* N/√watt
Resistance @ 20C* ohms
Electrical Cycle Length1.35 in34.29 mm
Attractive Force8442 lbf37552 N/ft
Air Gap0.03 in0.76 mm
