Brushless Linear Motor - BLDM-F16

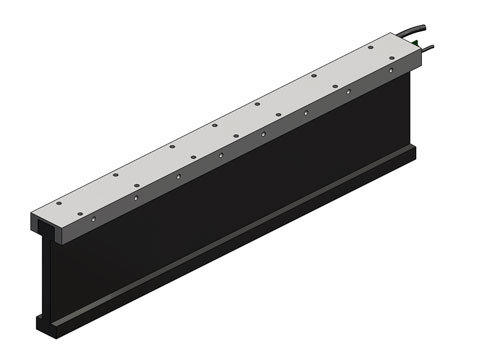

Brushless Linear Motor,a linear motor,product,BLDM-F16

The 3-phase brushless linear motor coil assembly can be commutated trapezoidally utilizing integrated hall effects, or sinusodially using software commutation in conjunction with the appropriate amplifier, or motion controller and encoder feedback. Any standard 3-phase brushless servo amplifier can be used to provide power to the coil assembly. The power to the motor, which is supplied from a brushless servo amplifier via a shielded high flex motor power cable. If the motor is ordered with a hall effect assembly board then a secondary high flex commutation cable will be included. Equivalent to Baldor motor LMCF16F.

To determine your motion profile needs, use our linear motion calculator.

Coil Weight	13.2 lbs	6.0 kg
Coil Length	20.0 in	508 mm
Power @ 10% Duty	3276 watts
Current @ 10% Duty	15.6 amps
Force @ 10% Duty	517 lbs	2300 N
Power @ 100% Duty	364 watts
Current @ 100% Duty	5.2 amps
Force @ 100% Duty	173 lbs	771 N
Back EMF	3.8 V/ips	148 V/m/sec
Force Constant	33.3 lbs/amp	148.3 N/amp
Motor Constant	10.3 lbs/√watt	45.8 N/√watt
Electrical Time Constant	1.3 msec
Inductance @ 20C	* mH
Resistance @ 20C	10.4 ohms
Electrical Cycle Length	2.4 in	60.96 mm
Attractive Force	0 lbf	0 N/ft

Product Drawing
