Brushless Linear Motor - BLDM-E12

Brushless Linear Motor,a linear motor,product,BLDM-E12

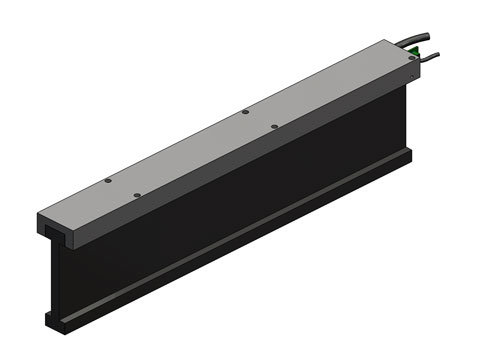

The 3-phase brushless linear motor coil assembly can be commutated trapezoidally utilizing integrated hall effects, or sinusodially using software commutation in conjunction with the appropriate amplifier, or motion controller and encoder feedback. Any standard 3-phase brushless servo amplifier can be used to provide power to the coil assembly. The power to the motor, which is supplied from a brushless servo amplifier via a shielded high flex motor power cable. If the motor is ordered with a hall effect assembly board then a secondary high flex commutation cable will be included. Equivalent to Baldor motor LMCF12E NB0411A01.

To determine your motion profile needs, use our linear motion calculator.

Coil Weight	4.9 lbs	2.2 kg
Coil Length	14.9 in	378 mm
Power @ 10% Duty	1926 watts
Current @ 10% Duty	9.2 amps
Force @ 10% Duty	254 lbs	1132 N
Power @ 100% Duty	214 watts
Current @ 100% Duty	3.1 amps
Force @ 100% Duty	85.0 lbs	377 N
Back EMF	3.1 V/ips	123 V/m/sec
Force Constant	27.7 lbs/amp	123.0 N/amp
Motor Constant	6.6 lbs/√watt	29.3 N/√watt
Electrical Time Constant	1.6 msec
Inductance @ 20C	* mH
Resistance @ 20C	17.6 ohms
Electrical Cycle Length	2.4 in	60.96 mm
Attractive Force	0 lbf	0 N/ft

Product Drawing
