Brushless Linear Motor - BLDM-E10

Brushless Linear Motor,a linear motor,product,BLDM-E10

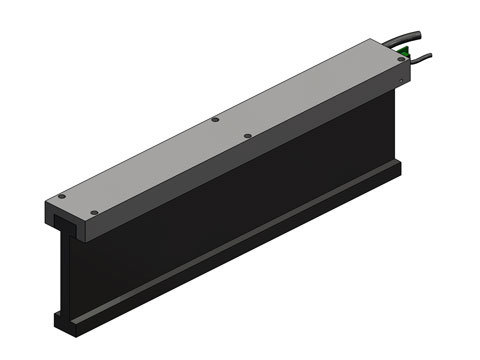

Brushless Linear Motor, BLDM-E10
The 3-phase brushless linear motor coil assembly can be commutated trapezoidally utilizing integrated hall effects, or sinusodially using software commutation in conjunction with the appropriate amplifier, or motion controller and encoder feedback.  Any standard 3-phase brushless servo amplifier can be used to provide power to the coil assembly.  The power to the motor, which is supplied from a brushless servo amplifier via a shielded high flex motor power cable.  If the motor is ordered with a hall effect assembly board then a secondary high flex commutation cable will be included.  Equivalent to Baldor motor LMCF10E.

To determine your motion profile needs, use our linear motion calculator.

Coil Weight3.97 lbs1.8 kg
Coil Length12.5 in317 mm
Power @ 10% Duty1602 watts
Current @ 10% Duty9.2 amps
Force @ 10% Duty212 lbs942 N
Power @ 100% Duty178 watts
Current @ 100% Duty3.1 amps
Force @ 100% Duty70.0 lbs314 N
Back EMF2.6 V/ips102 V/m/sec
Force Constant23.0 lbs/amp103 N/amp
Motor Constant6.0 lbs/√watt26.7 N/√watt
Electrical Time Constant1.6 msec
Inductance @ 20C* mH
Resistance @ 20C14.7 ohms
Electrical Cycle Length2.4 in60.96 mm
Attractive Force0 lbf0 N/ft
