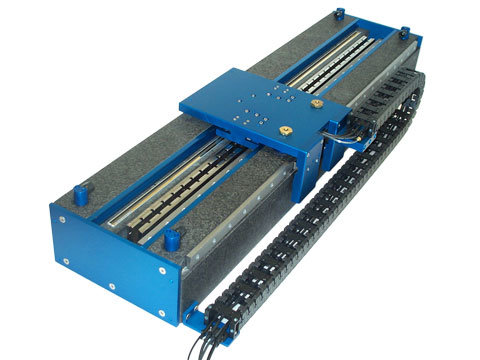

Air Bearing Stage - ABS-032-14-020-X

Air Bearing Stage,a linear motor,product,ABS-032-14-020-X The ABS-011-09-030-X air bearing positioning stage uses a brushless linear motor to generate a continuous/peak force of 20.6 lbs [92 N]/61.8 lbs [275 N] with a total stroke length of 31.5 in [800 mm]. The non-contact 1.0-micron resolution encoder allows for precise positioning. It is guided by 5 flat magnetically preloaded non-contact porous carbon air bearings (flat air bearing) floating on a granite base with excellent flatness and straightness specifications. There are also provisions that allow customer cables to be routed within the cable carrier. It has end-of-travel rubber bumper stops. End-of-travel-sensors and custom mounting holes on the moving table are available upon request. This system has no wearing parts. It is ideal for applications that require frictionless motion with low velocity ripple.

To determine your motion profile needs, use our linear motion calculator.

Product Drawing
Motor P/N n/a
Stroke31.5 in800 mm
Encoder Resolution1.0 micron
Bearing TypeAir
Moving Mass10.0 lbs4.5 kg
Total Mass260 lbs118 kg
Resistance @ 20C8.6 ohms
Inductance @ 20C6.0 mH
Electrical Time Constant0.70 msec
Motor Constant2.12 lbs/√watt9.43 N/√watt
Force Constant6.1 lbs/amp27.0 N/amp
Back EMF0.80 V/ips31.5 V/m/sec
Force @ 100% Duty20.6 lbs91.5 N
Power @ 100% Duty94.0 watts
Current @ 100% Duty3.4 amps
Force @ 10% Duty61.8 lbs274 N
Power @ 10% Duty846 watts
Current @ 10% Duty10.2 amps
Stage Length43.4 in1101 mm
Stage Width14.4 in365 mm
Stage Height6.6 in167 mm
