Air Bearing Stage - ABS-012-12-030-X

Air Bearing Stage,a linear motor,product,ABS-012-12-030-X
Air Bearing Stage, ABS-012-12-030-X

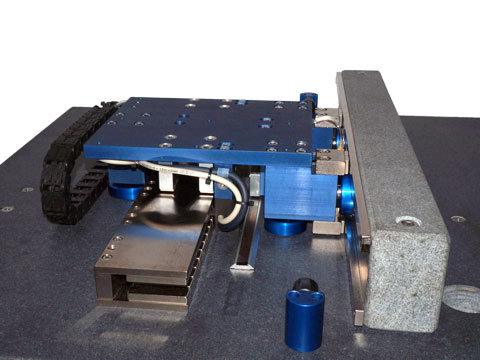

The ABS-012-12-030-X is a low profile air bearing positioning stage uses a brushless linear motor to generate a continuous/peak force of 29.0 lbs [129 N]/87.0 lbs [387 N] with a total stroke length of 12.3 in [311 mm]. The non-contact 1.0-micron resolution encoder allows for precise positioning. It is guided by 5 flat magnetically preloaded non-contact porous carbon air bearings (flat air bearing) floating on a granite base with excellent flatness and straightness specifications. There are also provisions that allow customer cables to be routed within the cable carrier. It has end-of-travel rubber bumper stops. End-of-travel-sensors and custom mounting holes on the moving table are available upon request. This system has no wearing parts. It is ideal for applications that require frictionless motion with low velocity ripple.



To determine your motion profile needs, use our linear motion calculator.

Bearing TypeAir
Motor P/N n/a
Forcer Mass15.0 lbs
Stroke12.3 in311 mm
Encoder Resolution1.0 micron
Bearing TypeAir
Moving Mass17.0 lbs7.7 kg
Total Mass275 lbs125 kg
Resistance @ 20C37.0 ohms
Inductance @ 20C8.5 mH
Electrical Time Constant0.23 msec
Motor Constant2.4 lbs/√watt10.6 N/√watt
Force Constant14.5 lbs/amp64.3 N/amp
Back EMF1.4 V/ips53.8 V/m/sec
Force @ 100% Duty71.0 lbs316 N
Power @ 100% Duty147 watts
Current @ 100% Duty2.0 amps
Force @ 10% Duty213 lbs948 N
Power @ 10% Duty1323 watts
Current @ 10% Duty8.0 amps
Stage Length20.0 in508 mm
Stage Width10.0 in254 mm
Stage Height30.0 in762 mm
