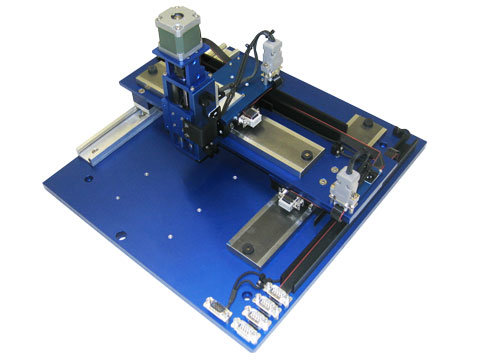

XYZ Stepper Gantry

multi-axis solution that uses direct drive linear motor technology and rotary-to-linear technology


Features:
- High Flex Ribbon Cable for Motor Power
- Outboard bearing for Stability
- Forward and Reverse Travel Limit Switches
- Three Axis Coordinated Motion


Multi-Axis Stage
Product Details (PDF)
XY Horizontal Axis (Single Axis Linear Stepper Stage)
Motor P/N STS-0620-R
Stroke 7.35 in 186.7 mm
Force 6 lbs 26.7 N
Vertical Axis (Linear Screw Driven Stage)
Motor P/N N/A
Stroke 2 in 50.8 mm
