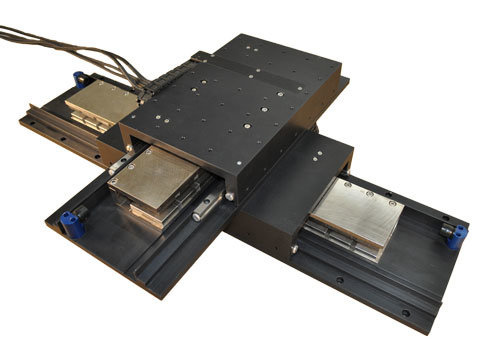

XY Crossed Roller Positioning Stage

multi-axis solution that uses direct drive linear motor technology and rotary-to-linear technology


Features:
- Wide footprint, very stable platform
- Low Profile
- Large load carrying capability
- Smooth motion
- Cable carriers to route payload cables
- Two axis of coordinated motion


Multi-Axis Stage
Product Details (PDF)
Bottom Horizontal Axis (Brushless Linear Motor Stage)
Motor P/N BLDD-02
Stroke 19 in 482.6 mm
Encoder Resolution 0.1 micron
Force @ 100% Duty 52.4 lbs 233.1 N
Force @ 10% Duty 157.2 lbs 669.3 N
Top Horizontal Axis (Brushless Linear Motor Stage)
Motor P/N BLDD-02
Stroke 9 in 228.6 mm
Encoder Resolution 0.1 micron
Force @ 100% Duty 52.4 lbs 233.1 N
Force @ 10% Duty 157.2 lbs 669.3 N
