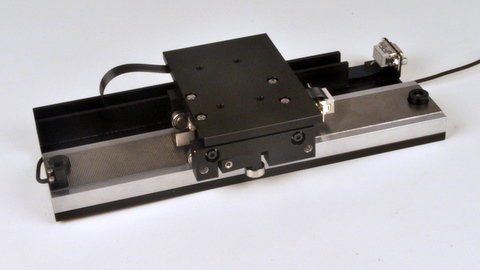

Linear Stepper Stages

Product Info:



Travel	1 to 144 inches	[25 mm to 3.6 m]
Velocity	0.01 to 80 inches/sec	[0.25mm to 2 m/s]
Acceleration	0.05 to 5 G's	0.05 to 5 G's
Peak Force	2.6 to 65 lbs	[12 N to 289 N]
Continuous Force	2 to 50 lbs	[9 N to 222 N]

The Linear Stepper Stage is a compact, small footprint, open type, positioning stage. It can be used in either open loop or closed loop positioning applications that require high speed and high accelerations of lighter loads.

Should this motor be required to operate in an open loop application, you can control it with a step and direction signal from a standard microstepping drive. The power is supplied to the 2 or 4 phase forcer winding via a flexible cable. The full step is .010” [250 microns] for a 2 phase forcer and it can be microstepped down to .00004” [1 micron].

By integrating an optional linear encoder onto the single-axis linear stepper motor stage the linear stepper motor operates closed loop, as a 2-phase brushless linear motor, when coupled with state-of-the-art motion control electronics package provided by H2W. This allows H2W's stage to achieve speeds and accelerations previously unachievable with a linear stepper motor.

The short moving assembly called a “forcer” is guided by either roller or air-bearings along he precision ground track called a “platen”. The bearings are designed to support the customer’s payload and to maintain the required .001” [0.025 mm] gap between the platen and the forcer.

The low overall weight of the stage makes it ideal as a Y axis (top axis) in a multi-axis system. The lower moving mass of the stage allows for much higher accelerations of light payloads.

An optional cable carrier allows a high cycle count and is oversized to allow for passage of customer payload cables and hoses. The back of the cable carrier can be easily removed and reattached to route through additional cables.

This package is low cost, and has a short lead time for custom lengths and/or options.

The Linear Stepper Stages incorporate the latest in linear motion technology:

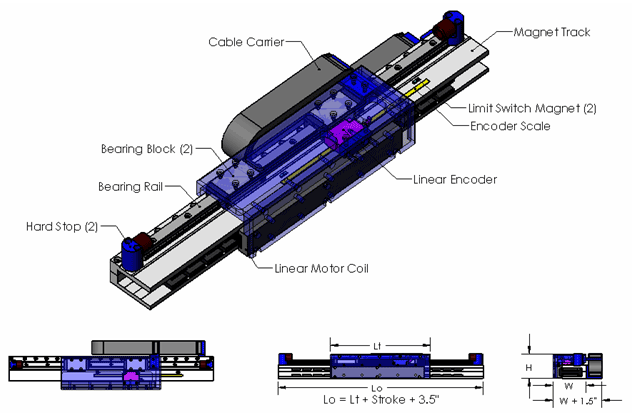

• Moving Forcer Assembly: The forcer is made up of an aluminum housing that contains the motor windings, lamination stacks, and permanent magnets. The active surface of the lamination is slotted to form teeth with a pitch of .040" [1 mm]. The ends of the coil are brought out to either a "D" connector or to flying leads. Mounting holes on the top surface of the forcer are for attaching the customer's payload. The forcer comes in different widths and lengths, depending on the required force. Multiple forcers can be supplied with a single platen to allow for independent moving heads.
• Long Stationary Platen: The platen is a precision ground steel bar or tube that is slotted to form .020" [0.50 mm] wide teeth on the surface. The bar is hard chrome plated and filled with epoxy to provide a flat air-bearing surface for the platen. The platen is available in widths from 1.25" to 3.0 " [31.8 mm to 76.2 mm]. The length of the platen is a function of the stroke. Single piece platens are available as long as 144 inches [3.6 m]. For longer strokes the platens will be supplied in sections.
• Encoders: Non-contact magnetic or metal scale optical linear encoders with a reference mark for homing.. Typical encoder output is a quadrature square wave signals A and B but sinusoidal output is available as an option.
• Limit Switches: End of travel limit switches can be included at both ends of the stroke. The switches can be either active high (5V to 24V) or active low. The switches can be used to shut down the amplifier or to signal the controller that an error has occurred. The limit switches are typically an integral part of the encoder, but can be mounted separately if required.
• Cable Carriers: Cable guidance is achieved by using a cable carrier. Cable carriers are oversized to allow for routing of customers hoses and cables.
• Hard Stops: Hard stops are incorporated into the ends of the stage to prevent over travel damage in the event of servo system failure.

Advantages:

• Small Footprint and cross section
• Lowest weight per unit length
• Simple design provides trouble-free, precision control
• Low cost
• High Acceleration of light loads
• High Speed

Applications:

• Pick and Place
• Vision Inspection
• Parts transfer
• Clean room

Operating Info:

Required Electronics:
To operate the stage in open loop mode, you need a step and direction signal from a microstepping drive, to the 2 or 4 phase forcer is supplied via a power cable. The motion achieved with a full step is .010” [250 microns] and with a microstep it’s .00004” [1 micron]. However to operate the stage in closed loop, the motor requires a 2 phase brushless amplifier with power supply. A programmable motion controller is required to close the position loop on the system.

Environmental Considerations:
The stage is a precision device with sensitive components, it should not be mounted in an environment that is wet or excessively dirty. The optical encoder scale is open and it should be kept free of debris in order to operate properly. The stationary magnetic assembly is highly magnetic, it should not be placed in an area where loose steel particles can be drawn into the magnetic gap. The stage must not be mounted in an environment with high ambient temperatures.

Mounting:
The stage should be mounted to flat and stiff surface. Counter bored thru holes are present in the stage to allow for the mounting of the stage to the customers system. The moving table assembly has threaded holes on the top surface for attaching the payload; custom mounting holes on the moving table are available upon request at no additional charge. The stage may be mounted in any orientation. When mounting the stage with the table moving vertical, it should be noted that the stage will be required to generate additional force due to gravity and that the stage will slide down to the bottom hard stop when power fails.

Maintenance:
The ball bearing guides in the stage should be periodically lubricated with the manufacturers recommended grease.

Ordering Info:

Stages can be ordered for any stroke up to 144 inches and any continuous force up to 165 lbs. The stages are built as the orders are placed, they are not stocked, as each customer requirement is different.

Model # LSS - AAA - BB - CCC - D
where:
AAA is the stroke in inches (36 inch stroke is -036)
AA/AA is the stroke for a 2 axis gantry stage (7 “ x 12” is – 07/12)
BB is the width of the stage (5 inch width is -05)
CCC is continuous force in lbs (6.0 lbs is 060 & 10 lbs is 100)
D is for encoder or special options
XY or XYZ is for multi axis systems.

(i.e. SRS-036-05-047-0 is a 5" wide SR stage with a 36" stroke, 47 lbs of continuous force and no special options)

Dimensions:

Specifications:

Accuracy*	±.0007” /ft	±68 micron / meter
Repeatability*	±.0004”	±10 micron

	Model #	Image	Stage Width	Stage Height	Table Length	Continuous Force	Motor P/N

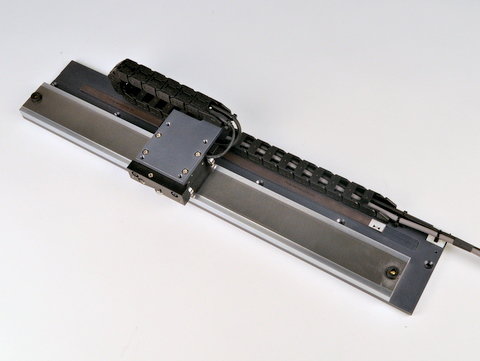

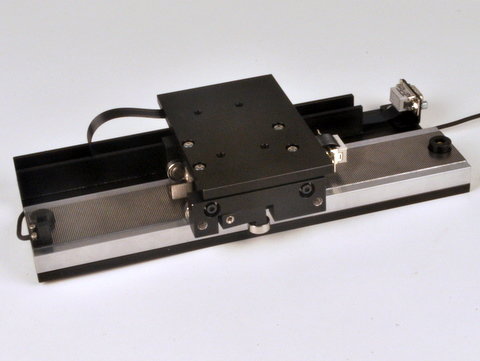

1	LSS-006-04-06		4.48 in 113.8 mm	1.82 in 46.2 mm	10 in 254 mm	6 lbs 26.7 N	STS-0620-R

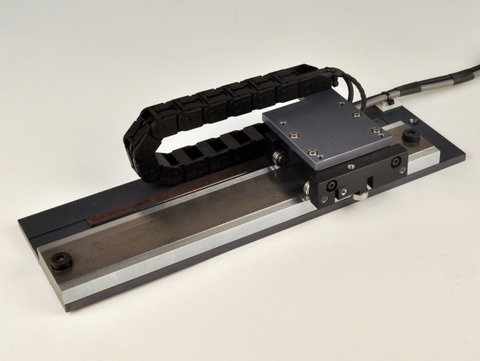

2	LSS-008-04-006-ME		4.480 in 113.8 mm	2.412 in 61.3 mm	12.565 in 319.2 mm	6 lbs 26.7 N	STS-0620-R
3	LSS-016-04-006-ME		4.480 in 113.8 mm	2.412 in 61.3 mm	20.565 in 522.4 mm	6 lbs 26.7 N	STS-0620-R
